2.1m × 3.3m temporary fence panels
pre-galvanized or powder coating
AU$80.00AU$73.22
2.1m × 3.3m temporary fence panels deliver extended coverage per panel, making them ideal for high-security and large-scale sites. With a 32 mm OD × 2.00 mm frame and 4.0 mm mesh wire in a 60 × 150 mm aperture, the MAX 3.3m spec balances premium rigidity with faster installs (fewer panels for the same run length).
Key advantages
Extended coverage: 6.93 m² per panel—≈37.5% more area than a 2.1 × 2.4 m panel—reduces panel count and joints.
High security: 2.00 mm wall + 4.0 mm wire resist tampering and crowd pressure.
Fewer joints, greater stability: Longer panels mean fewer clamp points and potential weak spots.
Trade-offs: Heavier (31 kg) and typically higher cost per panel; requires more hands or equipment to move and set.

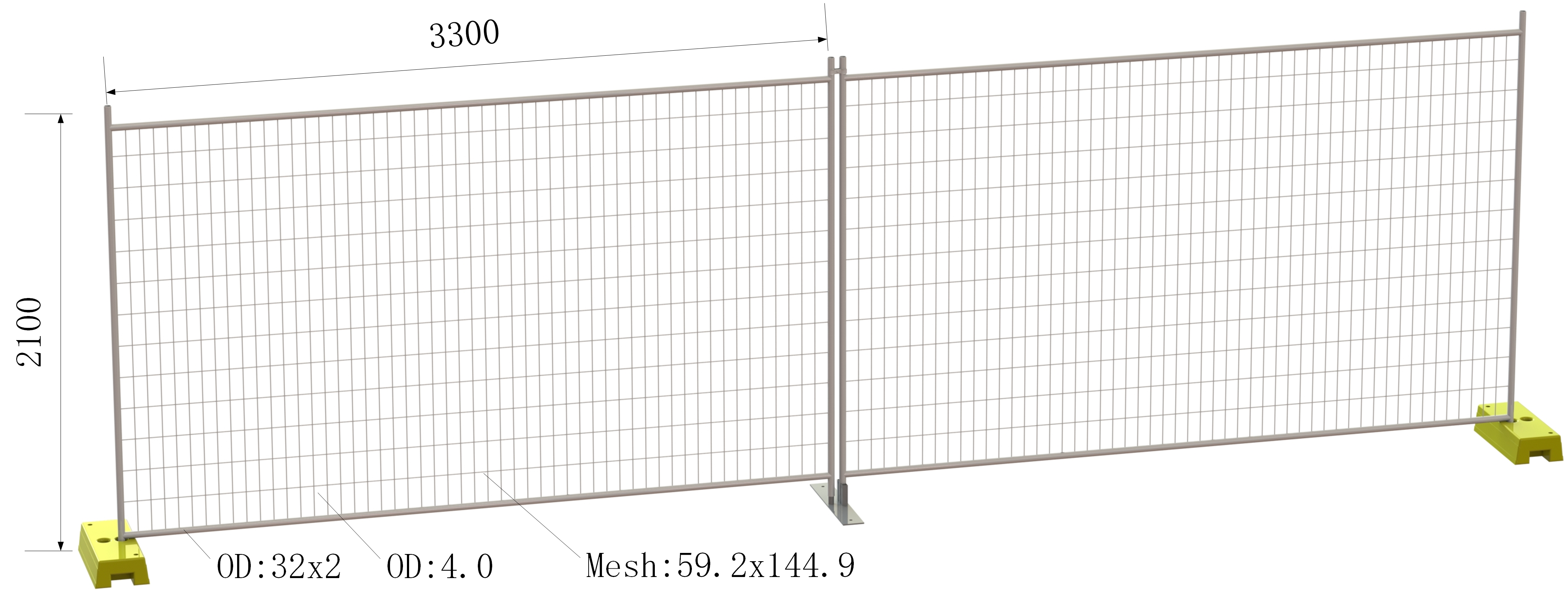

Technical specifications
Item | Specification (Metric) | Imperial / Notes |
|---|---|---|
Version | MAX 3.3m | — |
Description | Extended coverage, high security | — |
Frame tube (OD × wall) | 32 × 2.00 mm | ≈ 1.26" × 0.079" |
Panel size (H × W) | 2100 × 3300 mm | ≈ 82.68" × 129.92" (≈ 6′10.7″ × 10′9.9″) |
Mesh opening | 60 × 150 mm | ≈ 2.36" × 5.91" |
Wire diameter | 4.0 mm | ≈ 0.157" |
Horizontal wires | 24 | — |
Vertical wires | 52 | — |
Weight per panel | 31 kg | ≈ 68.34 lb |
Panel area | 6.93 m² | 2.1 m × 3.3 m |
Weight per m² | ≈ 4.47 kg/m² | 31 ÷ 6.93 |
Container loading (40HC) | 420 pcs | Panels only ≈ 13.0 t |
FOB Xingang price (USD) | Get a Price | Quoted on request |
7308900000
Metal pallet
Hot dipped Galvanized & Powder coating
240 kits
21 days
AS4687-2022
BMP
Australian Design China Made
10000 pieces per month
Welding
