2.1m × 3.5m Temporary Fence Panels
2.1m × 3.5m Temporary Fence Panels
AU$80.00AU$73.22

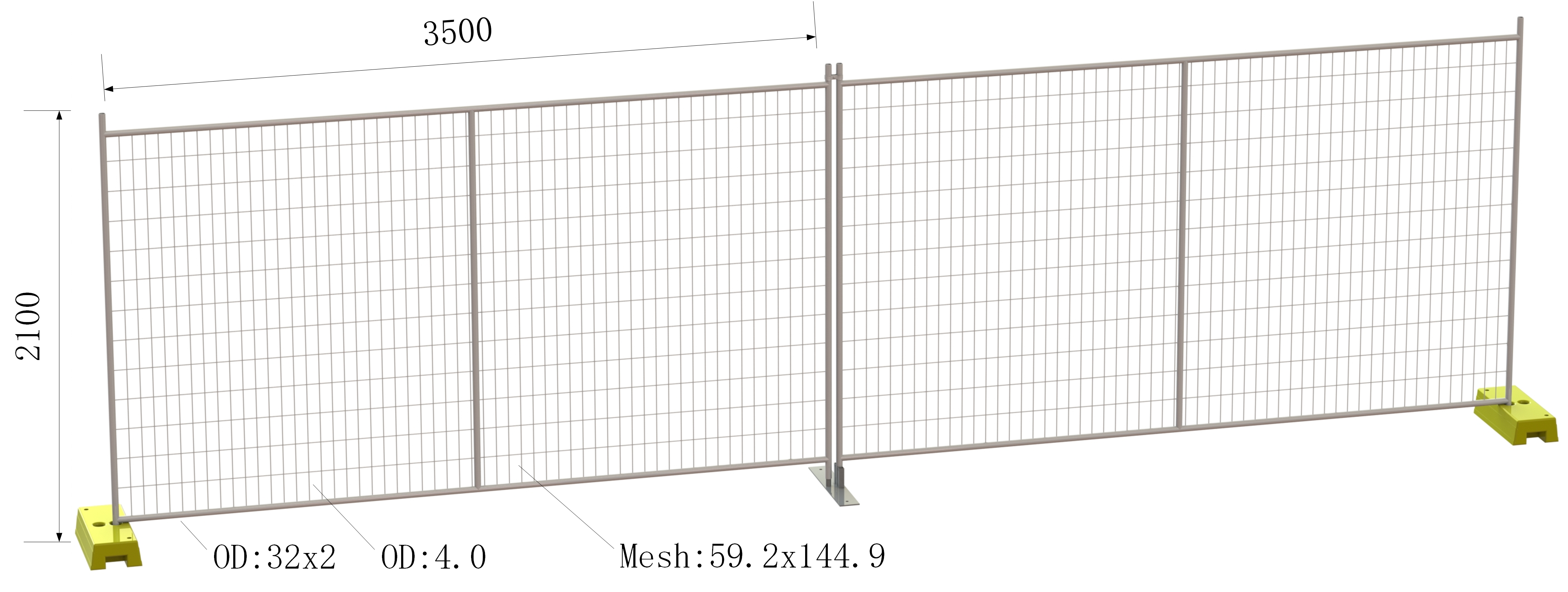

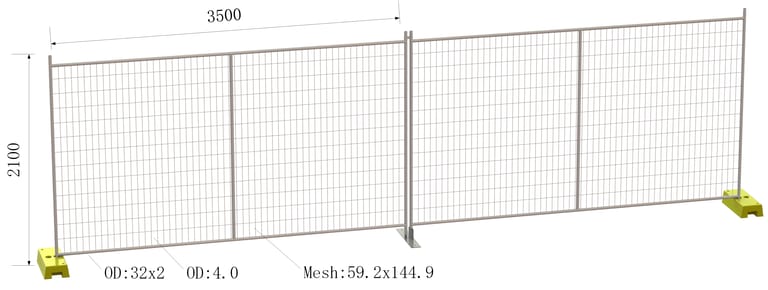

2.1m × 3.5m temporary fence panels push coverage and stability to the max for temporary systems. Using the same robust OD 32 × 2.00 mm frame and 4.0 mm wire in a 60 × 150 mm mesh, the MAX 3.5 spec is purpose-built for maximum security and stability over long perimeters.
Key advantages
Maximum single-panel coverage: 7.35 m²—≈45.8% more area than 2.1 × 2.4 m panels—fewer joints and faster linear progress.
Enhanced stability: Fewer gaps and clamps improve in-service rigidity when properly braced.
High-security geometry: 4.0 mm wire with tight 60 × 150 mm mesh resists prying and deformation.
Trade-offs: 33 kg per panel and premium pricing; plan for extra manpower/equipment and bracing in windy sites.
Technical specifications
Item | Specification (Metric) | Imperial / Notes |
|---|---|---|
Version | MAX 3.5 | — |
Description | Maximum security, enhanced stability | — |
Frame tube (OD × wall) | 32 × 2.00 mm | ≈ 1.26" × 0.079" |
Panel size (H × W) | 2100 × 3500 mm | ≈ 82.68" × 137.80" (≈ 6′10.7″ × 11′5.8″) |
Mesh opening | 60 × 150 mm | ≈ 2.36" × 5.91" |
Wire diameter | 4.0 mm | ≈ 0.157" |
Horizontal wires | 24 | — |
Vertical wires | 56 | — |
Weight per panel | 33 kg | ≈ 72.75 lb |
Panel area | 7.35 m² | 2.1 m × 3.5 m |
Weight per m² | ≈ 4.49 kg/m² | 33 ÷ 7.35 |
Container loading (40HC) | 420 pcs | Panels only ≈ 13.9 t |
FOB Xingang price (USD) | Get a Price | Quoted on request |
7308900000
Metal pallet
Hot dipped Galvanized & Powder coating
240 kits
21 days
AS4687-2022
BMP
Australian Design China Made
10000 pieces per month
Welding
