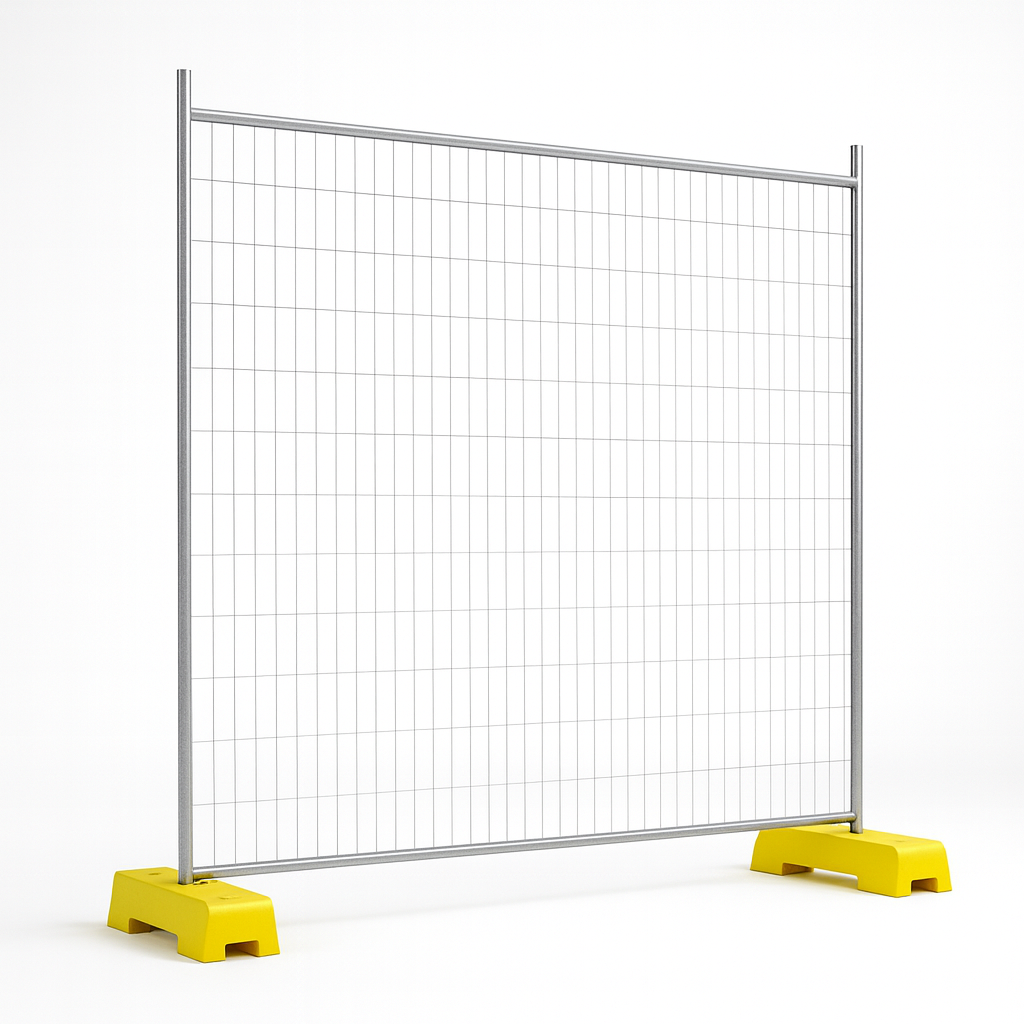

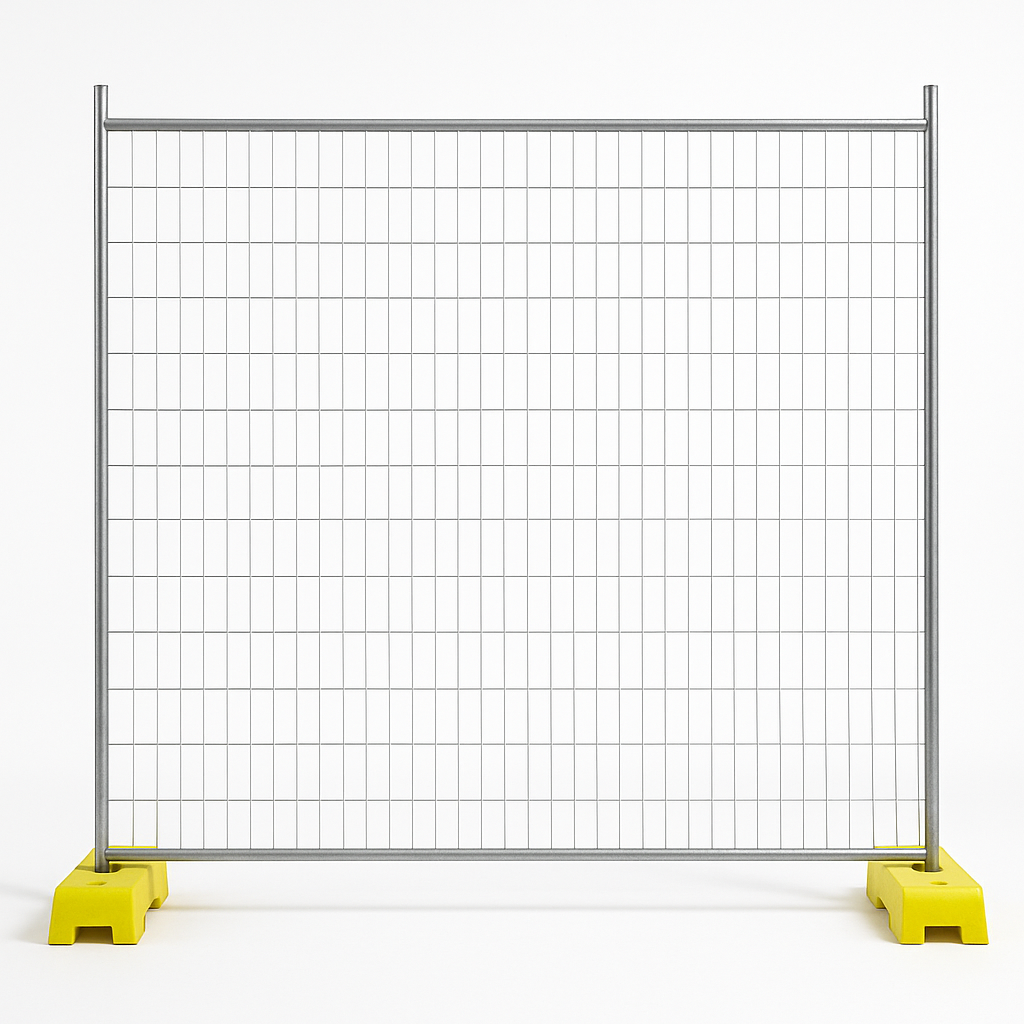

OD32×1.00 mm temporary fence panels
Portable security fencing with sturdy base
AU$80.00AU$73.22
Looking for lightweight, budget-friendly temporary fencing that still does the job? OD32×1.00 mm temporary fence panels (outer-diameter 32 mm tube with 1.00 mm wall) are the go-to choice for fast setup, basic perimeter control, and tight budgets. Below is a comprehensive, buyer-ready overview.Complied with AS 4687.2:2022 — Temporary fencing and temporary pedestrian barriers (minimum design, installation, and performance requirements for temp fencing)
Typical Panel Specs (A-CHEAPEST profile)
Item | Details |
|---|---|
Frame Tube | OD 32 mm × 1.00 mm wall |
Panel Height | 2100 mm (≈ 6′ 10.7″) |
Panel Width | 2400 mm (≈ 7′ 10.5″) |
Mesh Opening | 60 mm × 150 mm (≈ 2.36″ × 5.91″) |
Wire Diameter | 2.5 mm (≈ 0.098″) |
Horizontal Wires | 17 |
Vertical Wires | 38 |
Weight (per panel) | 10.36 kg (≈ 22.84 lb) |
Container Load (40′HC) | ≈ 690 panels |
Note: Specs can be fine-tuned by the factory (e.g., wire grade, weld pitch, coating).
OD32 mm × 1.00 mm Temporary Fence Panels — 2100 × 2400 mm with 60 × 150 mm, Ø2.5 mm welded mesh. Lightweight (≈10.36 kg) for fast deployment, compatible with standard feet, clamps, and braces. Finished in pre-galv with zinc repair or HDG-after-fab for maximum durability. Export-ready bundles (30–50 pcs) with edge protectors and heavy strapping; ≈690 pcs/40’HC.
7308900000
Metal pallet
Hot dipped Galvanized & Powder coating
240 kits
21 days
AS4687-2022
BMP
Australian Design China Made
10000 pieces per month
Welding
